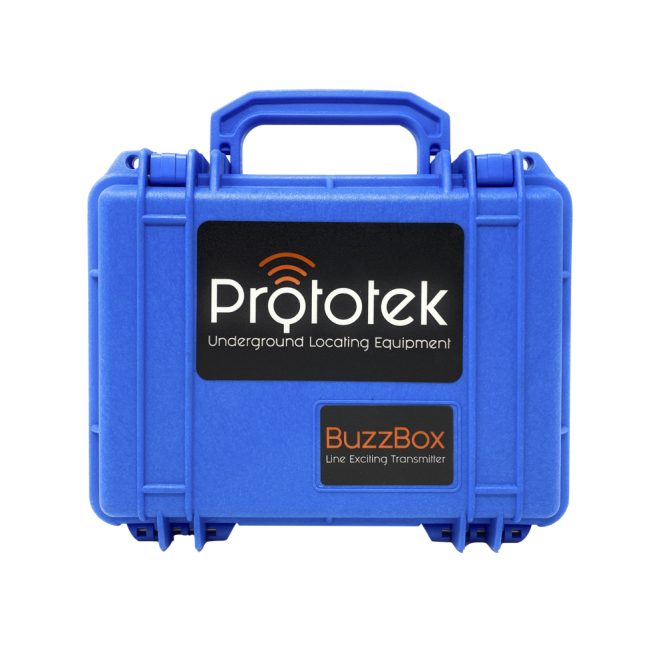

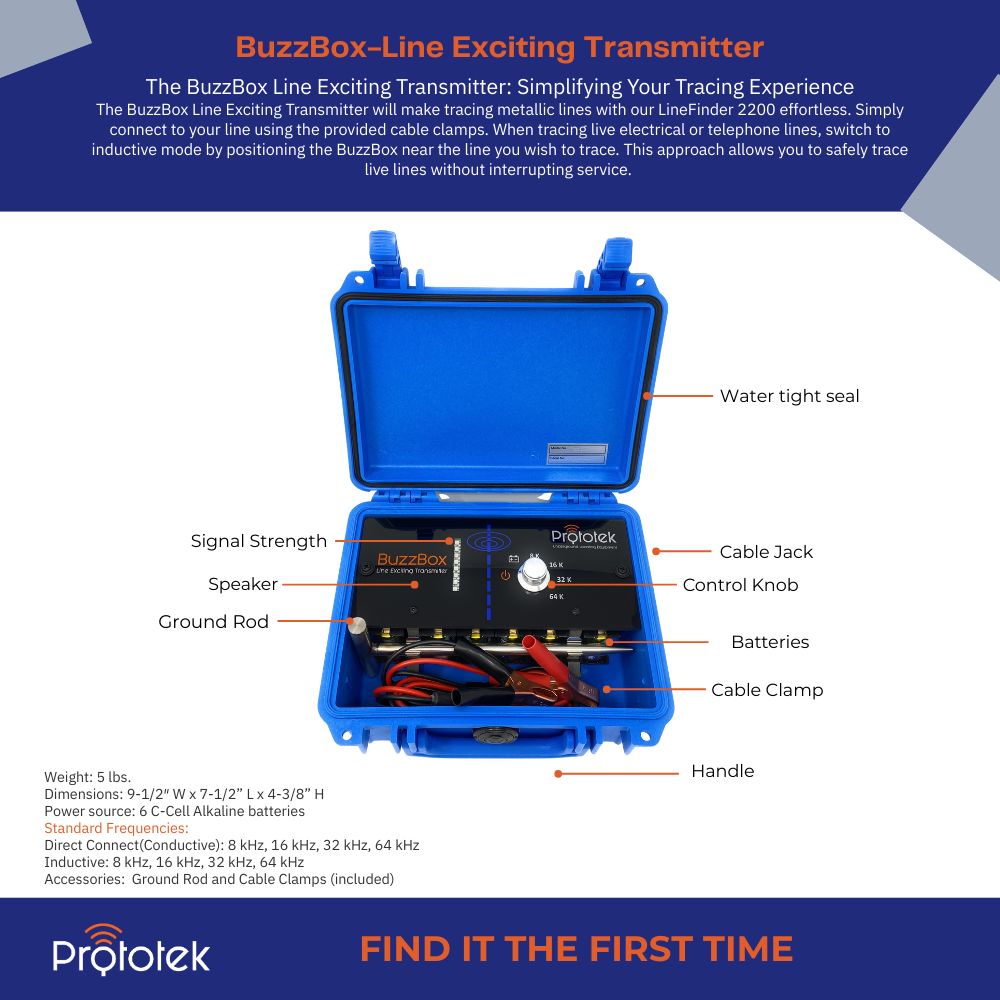

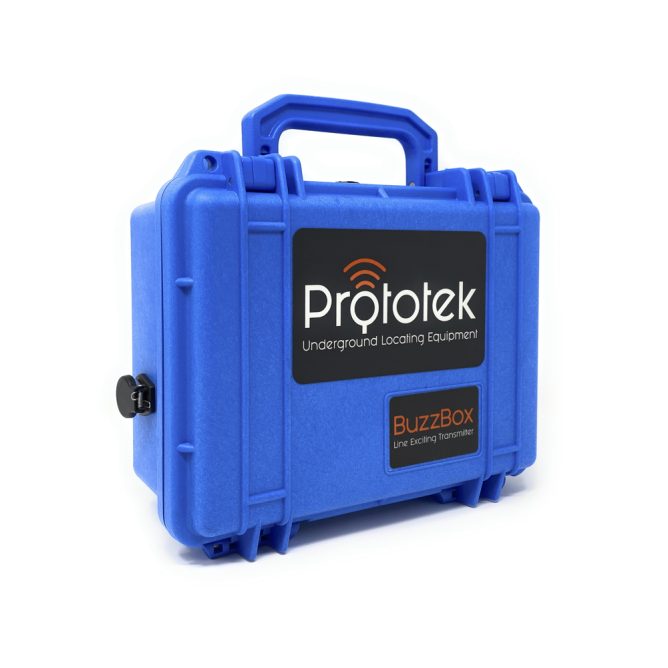

BuzzBox Line Exciting Transmitter


Multi-Frequency Line Exciting Transmitter – 8 KHz, 16 KHz, 32 KHz, 64 KHz

The BuzzBox Line Exciting Transmitter will make tracing metallic lines with our LineFinder 2200 a breeze. Connect to your line conductively using the cable clamps provided. If tracing live electrical or telephone lines, use the inductive mode by placing the BuzzBox close to the line you are trying to trace. This will allow you to trace the live lines safely, and you won’t have to disrupt service. You MUST have a multi-frequency receiver, like Prototek’s LineFinder 2200

  • Durable, watertight Pelican case with an easy-to-carry handle
  • Cable clamps, ground rod, and batteries included
  • LEDs indicate the signal strength and battery life
  • Inductive and Conductive modes
  • Securely fits into Prototek’s Digital Hard Case with the pre-cut foam

All transmitters ship 2-day for the price of ground. Just select ground at check out.

SKU: 00-112-0100 REV A Categories: , ,
  • Weight: 5 lbs.
  • Dimensions: 9-1/2″ W x 7-1/2” L x 4-3/8” H
  • Power source: 6 C cell Alkaline batteries
  • Output Power: 4 Watts maximum
  • Accessories: 9” stainless steel ground rod, cable with clamps
  • Traceable Lines: metallic lines, metal pipes, sewer cables, tracer wires and underground utilities
  • Standard Frequencies:
  • Inductive: 8 KHz, 16 KHz, 32 KHz, 64 KHz
  • Conductive: 8 KHz, 16 KHz, 32 KHz, 64 KHz
  • Signal Strength: Represented by 8 LEDs
  • Receiver Type: Prototek LineFinder 2200 or any receiver that has multi-frequency settings

Q: What is the best frequency for locating with the BuzzBox?
A: There isn’t one that is better than the other. We recommend that you try each one starting with the lowest frequency and see which is giving you the best results for the site you are on. All sites are different and present many variables, this is why we have given you 4 different frequencies to work with. If you have any questions please don’t hesitate to call. You can also check out our short instructional videos online.

Q: Will this work with my analog receiver?
A: No. The BuzzBox Line Exciting Transmitter will only work with our LineFinder 2200 Digital Receiver or any other receiver that has line tracing capabilities with similar frequencies as the BuzzBox.

Q: I used to have an orange buzzbox is this the same?
A: No. The blue buzzbox transmitter different frequencies. We no longer make the orange buzzbox.

Download Instructions PDF

Digital Line Tracing PDF

Features PDF

Training Videos and Documents

Download Prototek’s Digital Online Manual

Training Videos
